Immunotherapy and chimeric antigen receptor T-cell therapy in hepatocellular carcinoma

Introduction

Globally, liver cancer is estimated to be the sixth most diagnosed malignancy with over 840,000 new cases in 2018 (1,2). Additionally, it is a relevant cause of mortality with 782,000 deaths (1,2). Hepatocellular carcinoma (HCC) comprises 75–85% of primary liver cancers (2). The most common predisposing factors in HCC development include infections by hepatitis B virus (HBV) and C virus (HCV), alcohol use, aflatoxins, diabetes, and metabolic syndrome (3,4). HCC disproportionately affects Sub-Saharan Africa and Asia due to endemic chronic HBV infection (2). It is estimated that ~40% of HCC cases worldwide can be attributed to chronic HBV (4). However, there has been increasing incidence of HCC in traditionally low-risk HCC areas such as Western countries in the last twenty years, thought to be related to increased prevalence of obesity and non-alcoholic fatty liver disease (NAFLD) (5).

The overall five-year survival rate for HCC varies drastically depending on the stage at which the malignancy was originally diagnosed. If the disease is caught at its earlier stages (30–40% of cases) and able to undergo curative measures with ablation, resection, or transplantation, median overall survival (OS) can be greater than 60 months (6). However, most cases (50–60%) are diagnosed at advanced stages and managed with palliative intent, with a median OS of 26 months with chemoembolization in intermediate stage HCC, and only around 12 months in advanced HCC (6).

Liver and tumor microenvironment

The liver is constantly exposed to diverse dietary and microbial antigens from the gastrointestinal system through portal venous flow (7,8). As a result, it contains large populations of resident macrophages (Kupffer cells), lymphocytes and natural killer (NK) cells, which respond to antigenic presentation through cytokine production and killing of targeted cells (9-11). However, the liver also establishes immune tolerance in instances of non-pathogenic stimuli to avoid chronic inflammation. Kupffer cells assist in immune regulation by secreting IL-10 to inactivate NK cells, induce T-regulatory cells and inhibit T cells through expression of programmed cell death protein 1 (PD-1) and programmed death-ligand-1 (PD-L1) (8,10). Complex mechanisms of pro-inflammatory response and immune tolerance occur in the setting of fibrosis and chronic inflammation. The setting of chronic antigen stimulation leads to T cell exhaustion with upregulation of PD-1 and PD-L1 receptors (8,11). Studies have found that HCC tissue have increased PD-1 expression in CD8+ and CD4+ T cells associated with diminished cytotoxic function when compared with surrounding healthy tissue (12-14). PD-L1 expression has been strongly correlated with tumor size, poorer survival, and increased post-operative recurrence in HCC (15). The interplay of immunotolerance with fibrosis, chronic inflammation, and HCC development has spurred interest in novel therapies with checkpoint inhibitors (ICI).

Immune checkpoint inhibitors clinical trials

Checkmate-040, an open-label phase I/II dose expansion and escalation trial, evaluated nivolumab, an antibody anti-PD-1, to assess safety and efficacy. Patients included had Child-Pugh scores of 7 or less, and an Eastern Cooperative Oncology Group (ECOG) performance status of 0 or 1. Patients were treated with nivolumab 0.1–10 mg/kg every two weeks (q2w) in the dose-escalation phase and 3 mg/kg q2w in the dose-expansion phase. There were four cohorts of patients: sorafenib untreated or intolerant without viral hepatitis, sorafenib progressors without viral hepatitis, and cohorts associated with HCV or HBV infections (16). During the dose-escalation phase, nivolumab showed an acceptable safety profile. An objective response was seen in 42 of 214 (20%) patients in the dose-expansion cohort, with a median duration of response of 9.9 months. Stable disease was observed in 96 (45%) patients (16). Similarly, in KEYNOTE-224, a non-randomized open-label phase 2 study, pembrolizumab (PD-1 inhibitor) was utilized in Child-Pugh A patients with advanced HCC previously exposed to sorafenib. One hundred and four eligible patients were enrolled and treated with pembrolizumab 200 mg every three weeks (q3w) until two years or progression of disease. Objective response was observed in 18 (17%; 95% CI, 11–26%) patients with median duration not reached (3.1–14.6+ months). Disease stability occurred in 46 (44%) patients, and disease progression in 34 (33%) patients. Treatment-related adverse events (TRAE) occurred in 76 (73%) of 104 patients, with grades 1–2 in 49 (47%) patients, grade 3 in 25 (24%), grade 4 in one patient and grade 5 in one patient. Fatigue, elevated aspartate aminotransferase, pruritus, rash, and diarrhea were among the most common TRAE. Expression of PD-L1 was assessed in 52 patients, finding that the objective responses were 32% (7 of 22 patients) with combined positive scores of at least 1 and 20% (6 of 30 patients) with combined positive scores less than 1 (17). These studies led to the US Food and Drug Administration (FDA) accelerated approval of nivolumab and pembrolizumab monotherapies in patients with advanced HCC.

Another anti-PD-1, camrelizumab, was evaluated in an open-label, parallel, randomized trial in patients with advanced HCC (18). Two hundred and seventeen patients with advanced HCC previously exposed to systemic treatment were evaluated in two groups, camrelizumab 3 mg/kg every two or three weeks. In a median follow-up of 12.5 months, objective response was observed in 32 patients (14.7%; 95% CI, 10.3–20.2%). The OS rate in 6-month was 74.4% (95% CI, 68.0–79.7%). Median PFS for all patients treated was 2.1 months (95% CI, 2.0–3.2), and median OS was 13.8 months (95% CI, 11.5–16.6). Adverse events related to treatment were found in >20.0%, with reactive cutaneous capillary endothelial proliferation (RCCEP) as the most common immune-related adverse event (67%, all grade ≤2). Of note, those who had experienced RCCEP had significantly higher objective response (19.3% vs. 5.6%) (18).

Despite the early enthusiasm with PD-1 inhibitors, later phase 3 data questioned the efficacy of such agents as monotherapies in HCC. Results from CheckMate-459 that compared nivolumab to sorafenib in patients with advanced HCC in the first-line setting were presented (19). Seven hundred and forty-three patients were randomized to nivolumab (n=371) or sorafenib (n=372). ORR was higher in nivolumab (15%) compared to sorafenib (7%). However, despite median OS of nivolumab was numerically higher than sorafenib, 16.4 versus 14.7 months, the primary endpoint did not reach statistical significance (HR 0.85; 95% CI, 0.72–1.02; P=0.0752) (19). Sorafenib accounted for more grade 3/4 TRAE (49% vs. 22%) and treatment discontinuation (8% vs. 4%) (19). Similarly, randomized phase III trial evaluating pembrolizumab in the second-line setting did not meet its primary end point (20). In KEYNOTE-240, total of 413 patients were assigned in a 2:1 ratio to the pembrolizumab group (n=278) or placebo group (n=135). ORR in the pembrolizumab group was 18.3% compared with 4.4% in the placebo group. The median OS of pembrolizumab group was 13.9 months compared with 10.6 months in the placebo group (HR 0.781; 95% CI, 0.611–0.998; P=0.0238). Additionally, median progression-free survival (PFS) was 3.0 months for the pembrolizumab group compared with 2.8 months for placebo (HR 0.718; 95% CI, 0.570–0.904; P=0.0022). Despite the improvements in OS and PFS compared with placebo, prespecified parameters of P=0.0174 for OS and P=0.002 for PFS were not reached (20). Both these trials, CheckMate-459 in first-line setting and KEYNOTE-240 in second-line setting, showed that probably PD-1 inhibitors as monotherapy have limited activity in the majority of unselected HCC patient population, emphasizing the importance of better biomarker selection in this disease.

Tremelimumab, a monoclonal antibody that binds T-lymphocyte-associated protein 4 (CTLA-4) was initially studied in a phase II trial, in 20 patients with HCC and chronic HCV infection. There was an observed disease control rate (DCR) of 76%, partial response rate (PR) 17.6% with median time to progression (TTP) 6.4 months (95% CI, 3.95–9.14) and median OS 8.2 months (95% CI, 4.64–21.34). The drug had no safety concerns, with skin rash as the most common adverse event (65%). Forty-five percent of patients had grade 3 transaminase elevations, although this was transient and did not require steroids (21). Tremelimumab was later studied in conjunction with radiofrequency ablation, chemoablation, or transarterial chemoembolization (TACE) in advanced HCC. A total of 32 patients were involved. Five in 19 patients with lesions outside of areas treated with ablation/TACE had partial response (PR). TTP was 7.4 months (95% CI, 4.7–9.4 months), PFS rate in 6-month was 57.1% (95% CI, 37.1–72.9%) and in 12-month was 33.1% (95% CI, 16.2–51.2%). Median OS was 12.3 months (95% CI, 9.3–15.4 months). Given that all patients had also being treated with tremelimumab, with no control group, it was not clear if improvements were associated with the ablation procedure (22).

Association of anti-PD1 antibodies and anti-cytotoxic T-lymphocyte-associated protein 4 (CTLA-4) antibodies is based on the probable action of recruiting lymphocytes with the combined inhibition of B7-CTLA4 pathway. The efficacy of anti-PD-1 antibodies would be improved with the higher concentration of activated lymphocytes CD8+ in the tumor microenvironment (23,24). In a phase I/II trial, the combination of durvalumab, an anti-PD-L1 antibody, with tremelimumab, (D+T) was evaluated (25). A total of 40 patients with advanced HCC were exposed to the regimen. Overall DCR was 57.5% and objective RP 15% (25). Expansion cohorts further evaluated these drugs in different doses, in a four-arm study. A total of 332 patients who progressed, were intolerant, or refused sorafenib were randomized to single agent durvalumab, single agent tremelimumab or one of the two D+T combinations (tremelimumab 300 mg + durvalumab 1,500 mg followed by durvalumab every 4 weeks or tremelimumab 75 mg + durvalumab 1,500 mg followed by durvalumab every 4 weeks). The RPs and median OS were: 7.2% and 17.1 months in tremelimumab group, 9.6% and 11.7 months in durvalumab group, 9.5% and 11.3 months in tremelimumab 75 mg + durvalumab 1,500 mg combination group, and was the highest in the tremelimumab 300 mg + durvalumab 1,500 mg group with ORR of 22.7% and median OS of 18.7 months. However, this combination (T300+D) was associated with the highest toxicity profile with 35% of patients developing grade 3/4 TRAEs and 10.8% discontinuing the treatment due to adverse events. A randomized phase III trial HIMALAYA (NCT03298451) is evaluating D+T combination therapy against sorafenib in the first-line treatment of patients with advanced HCC, the study finished recruiting patients and results are eagerly awaited (26).

Similar to the trend above with increased efficacy when using higher doses of CTLA-4 inhibitors was found with ipilimumab. Ipilimumab, another anti-CTLA-4 antibody, was evaluated in association with nivolumab in the Checkmate 040 study. The combination was evaluated in three arms with different doses, arm A was nivolumab 1 mg/kg plus ipilimumab 3 mg/kg every three weeks (q3w) for 4 doses, followed by nivolumab 240 mg q2w, arm B nivolumab 3 mg/kg plus ipilimumab 1 mg/kg q3w (4 doses), followed by nivolumab 240 mg q2w, or arm C nivolumab 3 mg/kg q2w plus ipilimumab 1 mg/kg every six weeks (q6w). Of the 148 patients randomized, high proportion of patients presented with adverse prognostic features including vascular invasion and extrahepatic spread, 9% had at least 3 previous systemic treatments for advanced disease. The ORR was 32% (8% CR) in arm A, and 31% (6% CR) in arm B, and 31% (0% CR) in arm C. Median OS in arm A was 22.8 months (9.4–not reached), 12.5 months in arm B, and in arm C was 12.7 months. Of note, this study was not powered to evaluate efficacy differences between each treatment arms. A total of 53% of patients had a grade 3–4 TRAE in arm A, most commonly with autoimmune hepatitis, rash, diarrhea, and colitis. TRAE led to drug discontinuation in 18% of patients in arm A, 6% and 2% of patients in arm B and C, respectively. The majority of TRAE resolved across all arms with corticosteroids being used in higher grades (27). The results led to the approval by the FDA of the combination in patients who have progressed on prior sorafenib. A summary of the early studies and results can be found on Table 1. The above data shows the increased efficacy with combining programmed cell death inhibitors with higher doses of CTLA-4 inhibitors antibodies. However, as this associated with significant toxicity, further level-1 evidence is needed to further establish the role of these combinations in advanced HCC.

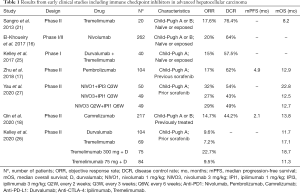

Table 1 Results from early clinical studies including immune checkpoint inhibitors in advanced hepatocellular carcinoma
Full table

Combination of immune checkpoint inhibitors with antiangiogenics

Pathways associated with vascular endothelial growth factor (VEGF) contribute to multiple immunosuppressive effects in tumor microenvironment (28,29). The blockage of VEGF associated pathways is associated with normalization of tumor vasculature, decreased activation of myeloid-derived suppressor cells (MDSCs), tumor-associated macrophages (TAMs) and regulatory T cells (Tregs), and improvements in maturation of dendritic cells resulting in an immunostimulatory microenvironment more accessible to immune checkpoint inhibitors (28,29). Anti-PD-L1 atezolizumab with bevacizumab (anti-VEGF antibody) was first evaluated in a phase IB cohort of 68 advanced HCC patients. At a minimum follow-up of 18 weeks, ORR was 34%, with responses observed in all clinically relevant subgroups. The combination had a manageable safety profile (30). Interestingly, in an exploratory post-roc analysis from GO30140 study showed that a subset of patients that experienced disease progression after atezolizumab for naïve advanced disease, had some benefit with addition of bevacizumab to atezolizumab in a crossover fashion (31). Most recently, IMbrave150 trial, a randomized phase III study, compared atezolizumab + bevacizumab with sorafenib in 366 treatment-naïve advanced HCC patients (32). In this study, patients with ECOG 0-1 and Child-Pugh A were randomized in a 2:1 ratio to receive the combination or sorafenib. Overall, more than 70% of patients included were Child-Pugh A5, 62% had an ECOG performance status 0, and 48% of patients treated in the combination group had prior local liver directed therapies. It was found that OS HR was 0.58 (95% CI, 0.42–0.79; P=0.0006) and PFS 6.8 months with atezolizumab + bevacizumab versus 4.3 months with sorafenib (HR 0.59; 95% CI, 0.47–0.76; P<0.0001). The estimated median OS with sorafenib was 13.2 months compared to median that was not reached in the combination arm. Additionally, adverse event rates were comparable, with grade 3–4 events occurring in 57% of patients with the combined regimen compared with 55% of patients who received sorafenib. The results of this study led to the FDA approval of the combination as standard of care (32). Although the combination (atezolizumab/bevacizumab) was not directly compared with other first-line treatments, a recent network meta-analysis showed the superiority of this regimen compared with lenvatinib and nivolumab as well (33).

Similarly, lenvatinib, a multi-kinase inhibitor that targets VEGFR1–3, was also evaluated with pembrolizumab in a phase Ib trial in advanced HCC (34). In this study the combination was evaluated in 100 patients in the first-line setting of systemic treatment. Median OS was 22 months (95% CI, 20.4–not estimable) and the median PFS was 8.6 months (95% CI, 7.1–9.7). The ORR by RECIST v1.1 per independent image review was 36%. In this cohort, 95% of patients (grade ≥3, 67%; grade ≥4, 4%) presented TRAE. Three patients died from TRAE (34). This early promising success led to an FDA breakthrough therapy designation to the combination in July 2019. However, the FDA recently held off on the originally planned approval of pembrolizumab/lenvatinib as the combination no longer meets the criteria for accelerated approval of showing meaningful improvement over available therapies (atezolizumab/bevacizumab). Further data is awaited with the phase 3 LEAP 002 trial (NCT03713593) comparing sorafenib with pembrolizumab/lenvatinib combination in advanced treatment naïve HCC. The study is currently ongoing but not enrolling any additional patients. Pembrolizumab plus lenvatinib and transarterial chemoembolization (TACE) will also be evaluated in a randomized phase 3 trial for intermediate HCC ineligible for curative treatment (35). In addition, lenvatinib is being evaluated associated with nivolumab in the IMMUNIB trial (36). Data from safety in this investigator-initiated phase II trial were presented in ESMO 2020, no limiting toxicities were observed in both cohorts with nivolumab 240 mg plus lenvatinib 12 or 8 mg. The study is still recruiting patients (36). Another anti-PD-1, CS1003, is being evaluated combined with lenvatinib. Sixteen Chinese patients with advanced HCC Child-Pugh A received the combination and were evaluated for efficacy in the phase Ib study. The objective RP was 37.5%. Like other studies TRAE was observed in 84.2% of the patients (37).

Another multi-kinase inhibitor cabozantinib, blocks VEGFR 1-3, AXL, c-MET and RET, was evaluated combined with nivolumab and ipilimumab in Checkmate 040 study. Seventy-one patients were randomized in two arms: 36 patients were treated with nivolumab 240 mg q2w plus cabozantinib 40 mg daily and 35 patients were treated with nivolumab 3 mg/kg q2w plus ipilimumab 1 mg/kg q6w and cabozantinib 40 mg daily. ORR was 17% in the nivolumab plus cabozantinib arm with a DCR of 81%. The RP was 26% in the nivolumab, ipilimumab plus cabozantinib arm with a DCR of 83%. Median OS is still not reached. It is important to note that in these cohorts, prior sorafenib exposure was allowed (38).

Regorafenib, another multiple tyrosine-kinase inhibitor with antiangiogenic features is also evaluated combined with anti-PD-1 for first-line systemic treatment of patients with metastatic HCC. The combination pembrolizumab and regorafenib was evaluated for safety and tolerability in a dose-finding study (39). In 18 patients treated with regorafenib 120 mg, four presented dose-limiting toxicities including transaminases and bilirubin elevations, and rash. Of 32 patients evaluated for response, 28% had a partial response, with a DCR of 91% (39).

A phase 2/3 is being conducted to evaluate combination of sintilimab, an anti-PD-1 antibody, and IBI305, a bevacizumab biosimilar, versus sorafenib for the treatment of patients with advanced HCC. Data from phase II part of the trial were presented, with 24 patients enrolled. After a median follow-up of 9.0 months, the median PFS in patients treated with the combination was 8.4 months (95% CI, 5.6–not reached), the ORR was 25% and the DCR 83.3%, accessed by the investigator. The randomized phase 3 trial evaluating the combination is ongoing, with a planned recruitment accrual of 546 patients (40).

Camrelizumab (SHR-1210) and apatinib (VEGFR2 inhibitor) were studied in an open-label phase Ia and Ib to assess tolerability and clinical activity in patients with HCC and gastroesophageal cancers (41). For dose escalation portion, 5 patients per cohort received apatinib in oral doses of 125, 250, or 500 mg with camrelizumab 200 mg (administered intravenously every 2 weeks). Fifteen patients (HCC n=8) were in the dose escalation phase and 28 patients (HCC n=10) were in the subsequent dose expansion phase (apatinib 250 mg was the selected dose). Out of 16 evaluable HCC patients, 8 achieved PR. ORR was 50.0% (95% CI, 24.7–75.4%) and DCR was 93.8% (95% CI, 69.8–99.8%). Median time to response was 3.4 months (1.4–9.7 months) and median PFS was 5.8 months (95% CI: 2.5–not reached). Treatment was well-tolerated at the apatinib 250 mg dose, with grade ≥3 TRAE most commonly being hypertension (15.2%) and elevated aspartate aminotransferase (15.2%). Of note, PD-L1 levels were evaluated on circulating tumor cells (CTCs) in 35 patients, and it was found that patients with ≥20% PD-L1^high CTCs had a significantly longer PFS compared with <20% PD-L1^high CTCs (6.1 vs. 2.9 months, HR 0.28; 95% CI, 0.12–0.67; P=0.0002). This study suggested that apatinib and camrelizumab were well tolerated and led to clinical efficacy, particularly in patients with ≥20% PD-L1^high CTCs at baseline (41). Further data from the combination on first-line and second-line of treatment for advanced disease was presented (42). This study involved patients from 25 study sites in China. Patients were treatment-naïve or sorafenib or donafenib exposed. Seventy treatment naïve patients and 120 patients previously treated (second-line setting) were enrolled to receive camrelizumab and apatinib, 88% were patients with HBV infection. The objective response assessed by independent central review per RECIST v1.1 was 34% and 23%; with a 12-month OS rate of 75% and 68%, respectively. Overall, 77% of patients had grade ≥3 TRAEs, with hypertension and increased γ-GT as common adverse events (42). A summary of the early studies and results with immune checkpoint inhibitors and antiangiogenics can be found on Table 2. Data from randomized phase 3 trials can be found in Table 3.

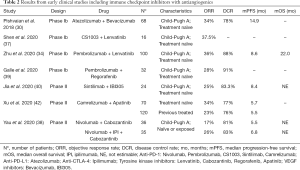

Table 2 Results from early clinical studies including immune checkpoint inhibitors with antiangiogenics
Full table

Table 3 Results from randomized phase III studies of immune checkpoint inhibitors in advanced hepatocellular carcinoma
Full table

Chimeric antigen receptor T-cell (CAR-T)/T-cell receptors (TCR) therapy

CAR-T therapy is another avenue through which the immune system can be harnessed to target a tumor. By combining an extracellular ligand recognition domain with an intracellular signaling platform, these synthetically developed receptors in T cells can be activated by specific tumor antigens (43,44). CAR-T therapy has found success in B cell malignancies through targeting of CD19; however, testing in solid tumors has not yielded viable options as of yet. The lack of efficacy in solid tumors can be attributed to utilizing suboptimal tumor antigens as targets, as well as the inhibitory nature of the tumor microenvironment. Within the tumor microenvironment, hypoxia, nutrient deprivation, and expression of inhibitory checkpoint ligands stymie the proliferation and effector function of T cells (45,46). Tumor production of indoleamine 2,3-dioxygenase (IDO) catalyzes tryptophan breakdown and resultant formation of metabolites that have been found to inhibit CAR-T cells (47).

Additionally, while efficacy of CAR-T therapy in solid tumors has been limited, significant adverse effects have been associated with CAR-T which include cytokine release syndrome and neurotoxicity (48,49). Thus, selecting highly specific HCC antigens would be key to delivering a more efficacious and safe therapy.

Glypican-3 (GPC3), a heparin sulfate proteoglycan highly expressed in most HCC has been explored as a target for CAR-T therapy. There have been several studies that showed activity against HCC in vivo and in patient-derived xenografts with anti-GPC3 CAR-T therapy (50-52). Of note, it was found that the GPC3 CAR-T cells were able to eradicate PD-L1 negative tumors in xenografts, whereas the PD-L1 tumors were more aggressive (51), and models demonstrate that generated PD-1-deficient GPC3 CAR-T cells exhibits 1.25–1.30 times the cytotoxic activity of wild-type GPC3 CAR-T cells (51-53). These findings suggest the potential of combination of immune checkpoint inhibitors to enhance CAR-T therapy’s cytotoxic effects in HCC (54,55).

Alpha-fetoprotein (AFP) is used as biomarker for hepatocellular carcinoma, with 60% to 80% of the tumors expressing the protein (56). Tumor-specific T cells have low affinity, and an option to obtain high-affinity antigen-specific T cells is to genetically modify T cells with tumor-specific TCR (57-59). TCR developed to target AFP expressing HCC have been clinically evaluated with no major safety concerns (57-59). The interaction of TCRs with major histocompatibility complex (MHC) on the cell surface improved the affinity and is being evaluated in clinical trials, with most studies using human leukocyte antigen (HLA) A02:01 given prevalence and early results (59,60). In Table 4 some CAR-T and TCRs studies in recruiting stage are exemplified.

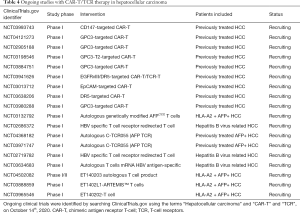

Table 4 Ongoing studies with CAR-T/TCR therapy in hepatocellular carcinoma
Full table

Conclusions

In the setting of advanced HCC, immune-directed therapies are particularly novel and established a new paradigm in the treatment of the disease. New combinations with antiangiogenics are emerging and standard of care with novel drugs could be achieved soon. Immune cell therapy associated with PD-1 pathway blockage could be a new revenue for the success of the strategy in solid tumors including advanced hepatocellular carcinoma.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editors (Mehmet Akce and Shishir K. Maithel) for the series “Hepatocellular Carcinoma” published in Chinese Clinical Oncology. The article was sent for external peer review organized by the Guest Editors and the editorial office.

Conflicts of Interest: The authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cco-20-231). The series “Hepatocellular Carcinoma” was commissioned by the editorial office without any funding or sponsorship. Dr. MJB reports grants from Senhwa Pharmaceuticals, grants from Adaptimmune, grants from Agios Pharmaceuticals, grants from Halozyme Pharmaceuticals, grants from EMD Merck Serono, grants from Celgene Pharmaceuticals, grants from Toray, grants from Dicerna, grants from Taiho Pharmaceuticals, grants from Sun Biopharma, grants from Isis Pharmaceuticals, grants from Redhill Pharmaceuticals, grants from Boston Biomed, grants from Basilea, grants from Incyte Pharmaceuticals, grants from Mirna Pharmaceuticals, grants from Medimmune, grants from Bioline, grants from Sillajen, grants from ARIAD Pharmaceuticals, grants from PUMA Pharmaceuticals, grants from Novartis Pharmaceuticals, grants from QED Pharmaceuticals, grants from Pieris Pharmaceuticals, other from ADC Therapeutics, other from Exelixis Pharmaceuticals, other from Inspyr Therapeutics, other from G1 therapeutics, other from Immunovative, other from OncBioMune Pharmaceuticals, other from Western Oncolytics, other from Lynx Group, other from Astra Zenica, outside the submitted work. Dr. TSBS reports grants from Boston biomedical, grants and personal fees from Bayer, grants from Amgen, grants and personal fees from Merck, grants from Celgene, grants and other from Lilly, grants and personal fees from Ipsen, grants from Clovis, grants and personal fees from Seattle Genetics, grants and personal fees from Array biopharma, grants and personal fees from Genentech, grants from Abgenomics, grants and personal fees from Incyte, grants from BMS, personal fees from Boehringer Ingelheim, personal fees from TreosBio, personal fees from Sobi, other from Astra zenica, other from PanCan, other from 1Globe, other from Sun biopharma, other from Imugene, other from Immuneering, outside the submitted work. In addition, Dr. TSBS has a patent WO/2018/183488 issued, and a patent WO/2019/055687 issued. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
